Información Básica.
No. de Modelo.
D72L-8
Power Supply
Eléctrico
Technics
Assembly
Material
fibra de carbono de aviación y aluminio de aviación
Type
Sprayer Drone
tipo de pulverizador
bomba
uso
agricultura
industria aplicable
granjas,uso doméstico,prevención de epidemias
operación
anticaídas
material de producción
fibra de carbono de aviación y aluminio de aviación
tamaño de plegado de producción
1050mm*900mm*2000mm
carga máxima de pesticidas
72kg
capacidad de la caja de medicamentos de aviones
72l
radio de vuelo
menos de 5000m
peso máximo de despegue
147kg
peso del avión
52kg sin batería
actitud de vuelo
menos de 30m
duración del vuelo
13-25minutos
condición
nuevo
tiempo de garantía
12 meses
Paquete de Transporte
Professional Package Box
Especificación
2 CBM
Marca Comercial
BROUAV
Origen
China
Código del HS
8802200090
Capacidad de Producción
10000 Unit
Descripción de Producto

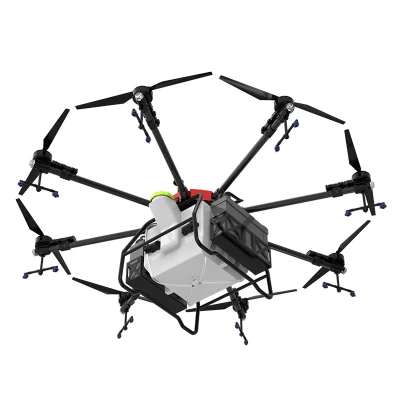

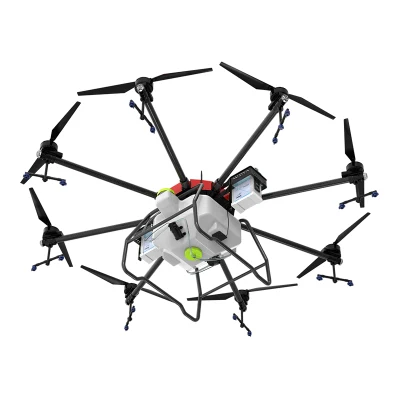

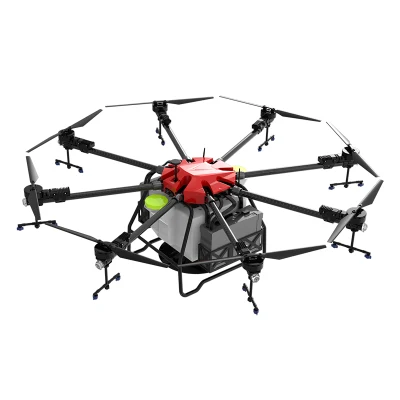

72kg payload agricultural sprayers commercial drones
- OEM & ODM Service -
Product Description
Large capacity, large size, great success
The capacity is increased to 72kg and the flight time reaches 25 minutes in no-load mode.In payload mode, it travels at 10 meters per second.Spray at a rate of 8-15 L/min.
The control system adopts agricultural professional controller, the specialized system provides excellent performance support.Can be selected with fertilizer kit, a machine multi-purpose, reduce the cost of use.
The performance of the whole machine is optimized, and the hidden circuit is designed to prolong the service life of components and reduce after-sales problems.
Product Specifications
The control system adopts agricultural professional controller, the specialized system provides excellent performance support.Can be selected with fertilizer kit, a machine multi-purpose, reduce the cost of use.
The performance of the whole machine is optimized, and the hidden circuit is designed to prolong the service life of components and reduce after-sales problems.
Product Specifications
| Model | D72L-8 |
| Product material | Aviation carbon fiber + aviation aluminum |
| Product extended size | 3920mm*3920mm*930mm |
| Product folding size | 1050mm*900mm*2000mm |
| Packaging size | 2020*1060*950mm |
| Maximum takeoff weight | 147KG |
| Aircraft weight | 52KG (Excluding Battery) |
| Pesticide Barrel | 72L |
| Flight altitude | ≤30 meters |
| Fly time(unloaded) | 20~25 minutes |
| Fly time(loaded) | 6~10minutes |
| Aircraft life span | ≥10 years |
| Spray width | 8-15 meters |
| Flight speed | 1-10 m / sec |
| Hovering in the air | Hovering in any direction |
| Spray flow | 8-15L/min |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~500μm |
| Fly control | Industrial Version GPS and Controller |
| Spray efficiency | ≥28 hectares / hour |
| Safe takeoff and landing wind speed | ≤5 |

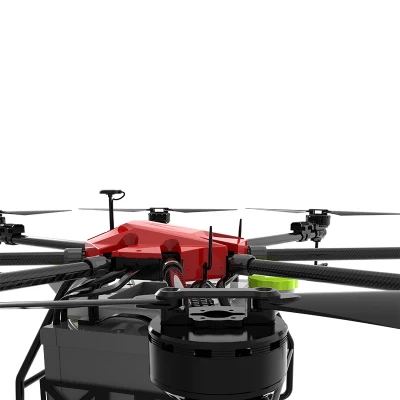

| Motor speed | 5000rpm |
| Power system | 60.9 V power polymer computer battery |
| Charger | AC Input 100-240V |
| Lithium-polymer battery | 42000mAh*2 |
Features

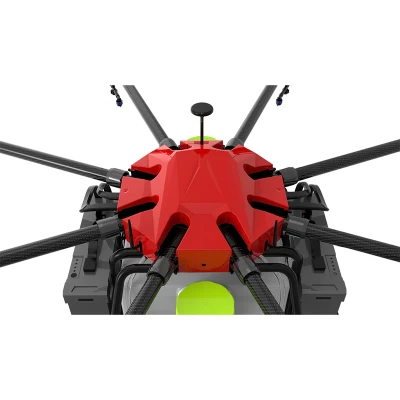

1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery
6. Use quick-plug medicine barrel
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
Don't puncture the battery. If the battery pack is drummed, there is a safety hazard. Especially when charging, the drum pack should be stopped immediately and the battery should be moved to a safe place.
